DVB-Receiver: DVB to IP Gateways Streamer
Our various types supporting the modern state of the art DVB-S2x
and optional Multituner with DVB-C -T(2) /ATSC/ISDB-T inputs to MPTS 1:1 and/or Single SPTS demultiplexed Transport Streams (TS) Uni- and Multicast stream outputs:
We distinguish between Free To Air (FTA) -reception of Digital TV Transportstreams (DVB-TS) and PAY-TV Common Interface (CI) equipped Conditional Access Modules (CAM) Version for decryption.
Remark: In headend's the usage of professional multiservice decryption (MSD) capable conditional access modules (CAM) for the common interface slots (CI) are to be used
CI+ CA-modules (CAM) are only specified for consumer devices like STB's or TV sets which also have a particular CI+ certification.
| Digital-TV DVB-Receiver IP-Gateway Product List: | |
|---|---|
| 24 DVB Tuner to 1024 IP Streams : | IGS-924 |
| 8 DVB Tuner to 64 Multi-protocoll-Streams: | IGS-8008 |
| 16 DVB Tuner to SPTS or MPTS IP : | IGS-900 |
| 4 or 8 DVB Tuner with 4 CI to IP out: | IGS-700 |
| ASI - IP - ASI DVB- TS Gateway : | IGA-4400 |
IGS-924 V3: 24x FTA DVB-S(2x) optional DVB-C/T(2)/ATSC/ISDB-T Tuner
New design:
The IGS-924 (V3 = New Version) is a FTA (Free to Air) DVB to IP Gateway, which has 24 DVB-S/S2x tuners (Multituner DVB-C, DVB-T/T2, ISDB-Tb optional) and de-multiplexing functions in 1RU chassis to convert RF signals into SPTS or MPTS IPTV output.
SPTS or MPTS can be selected either - or. Additional equipped with 1(2) ASI input, 2x ASI out.
To meet customers various requirements, IGS-924 is designed to stream TV- and Radio-Channels from any input, RF and an ASI IN-Source(s).
Demultiplexing to up to 2x 512x SPTS or 2x12 MPTS passing IPTV streams output in UDP, RTP/RTSP with up to a total load of 2x 850 Mbps.
BISS descrambling function is built in. It has DiSEqC Support for selecting up to 4 different satellite positions.
CA Filter and PID-Remapping as well as PID excluding (depending on mode and model).

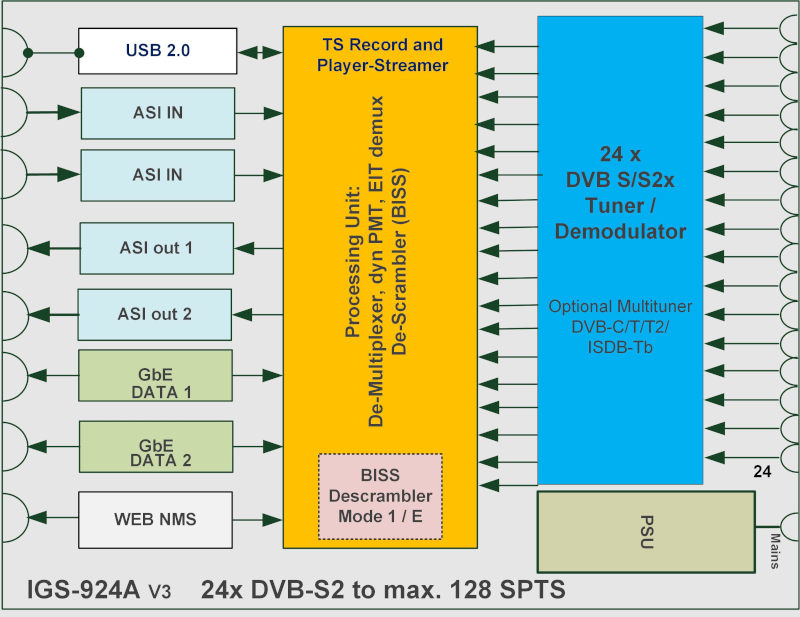

Block-Diagram:
Features:
- 24 Tuner inputs DVB-S/S2/S2x (DVB-C -T/T2, ISDB-Tb optional)
- New: DVB-T2-MI Multistream reception via DVB-S/S2/S2x Transponder
- 1 (2) ASI input, 2 ASI outputs (parallel)
- IP (1024 SPTS or 24 MPTS) over UDP, RTP / RTSP output
- DiSEqC support for up to 4 Satellites
- 2 independent GbE output port, GE1 + GE2 (2x12 MPTS) or up to 850 Mbps each (2x 512 SPTS)
- Accurate PCR adjusting (SPTS)
- PID filtering and re-mapping (SPTS), CA-Filter, PSI/SI rebuilding and editing (SPTS), “Null PKT Filter” function (MPTS)
- USB-port for playback TS-recorded or Movie-files – Infochannel streaming files selectable or in a loop
- IPTV/OTT and Digital Signage applications
- BISS 1/E embedded descrambling
- WEB-IF management
Technical Data:
| Digital-TV Receiver IP-Gateway | 24 tuner inputs + 1 (2)x ASI in + USB-TS Player = channel insertion -> SPTS or MPTS outputs |
|---|---|
| DVB-S / -S2 / -S2x | >950...2150MHz, SR 0.5...45Msps, Strength -65... -25dBm |
| DVB-C/-T/-T2/ISDB-T/ATSC optional | 60...890MHz, 16/32/64/128/256 QAM, 6/7/8 M bandwidth |
| DVB-S2x max. SR and Constellation: | QPSK/8PSK /16APSK :0.5...45 Msps 8APSK: 0.5...40Msps 32APSK: 0.5...34Msps |
| FEC - maximum | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20,11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/ |
| Max input bitrate | ≤125 Mbps |
| BISS Descrambling | Mode 1, Mode E (Up to 850Mbps) (descrambling individual program’s) |
| Output | Unicast and Multicast 2x 512 SPTS IP output over UDP and RTP/RTSP protocol through GE1 & GE2 port (IP address and port number of GE1 and GE2 are independent) |
| 2x12 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through 12 on GE1 and 12 on GE2 port, Unicast and Multicast | |
| 2x selectable ASI output, TS-Player-Streamer from connected USB-PEN | |
| System | Web-Server based management via 100BaseT port |
| software upgrade via Web-IF | |
| Dimension | 482mm×230mm×44mm (W×L×H) |
| Approx weight | 3.6kg |
| Environment | 0...45°C (working condition); -20...80°C（in Storage） |
| Power requirements | 20W |
V3 Datasheet as PDFDownload
Old V1 Datasheet PDFDownload

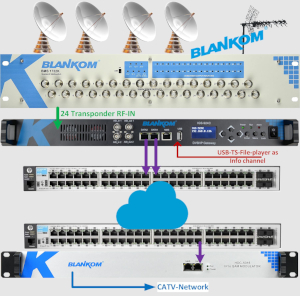

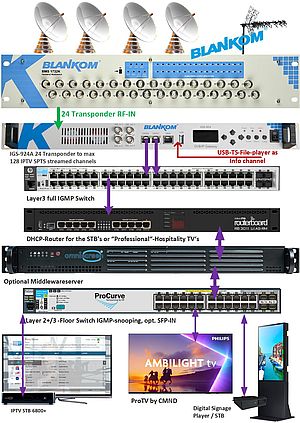

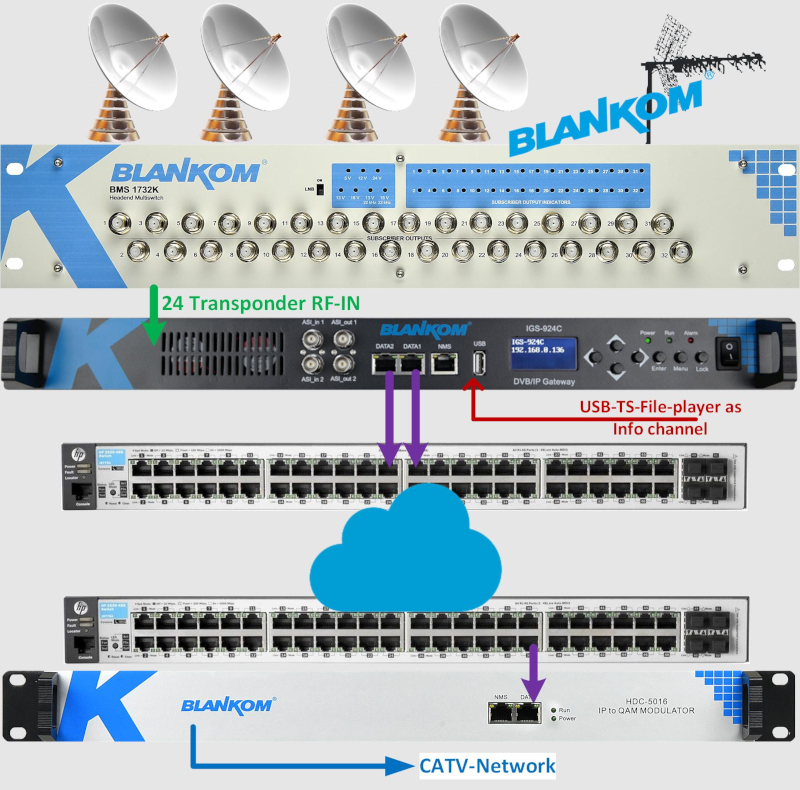

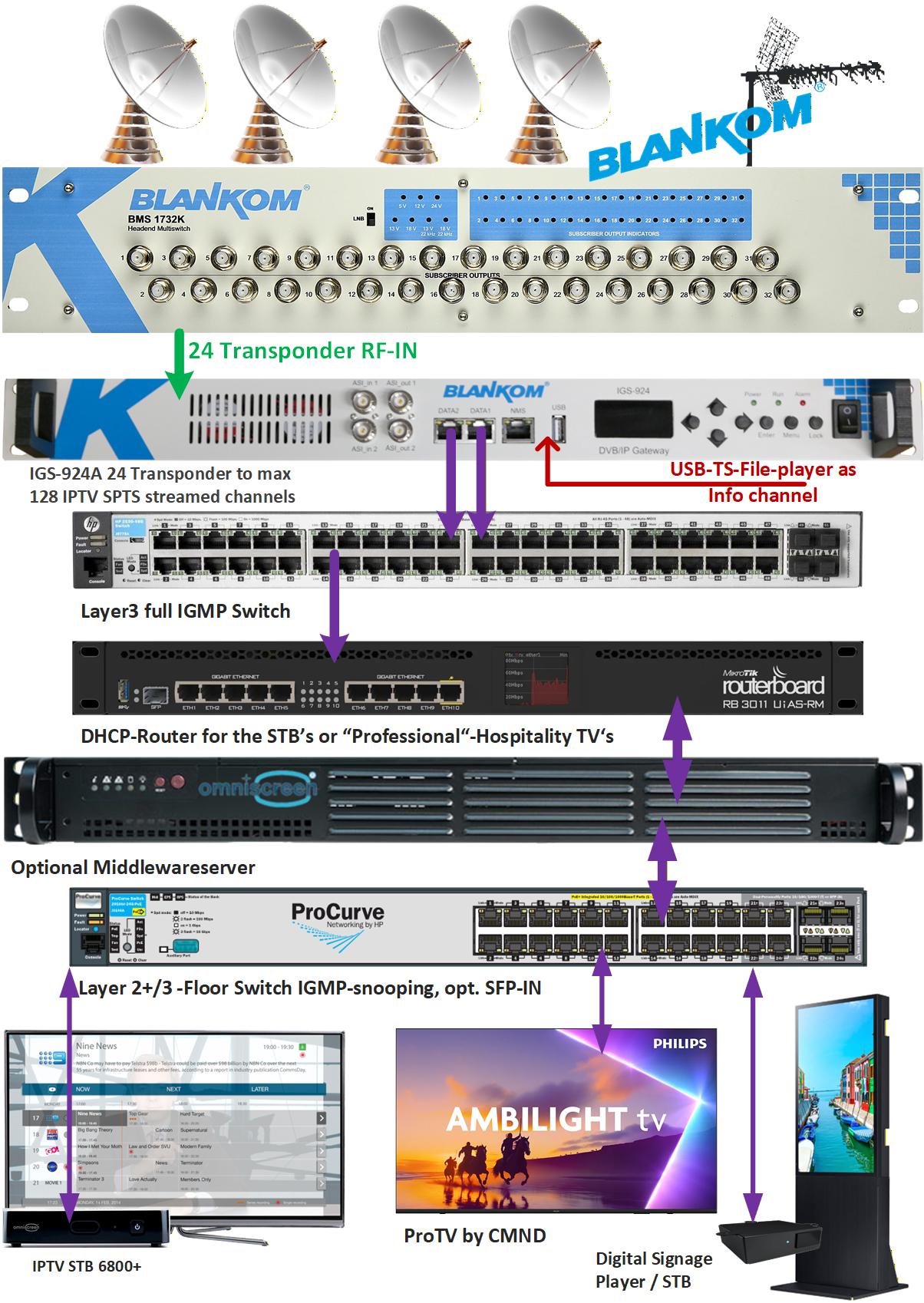

Application Example:

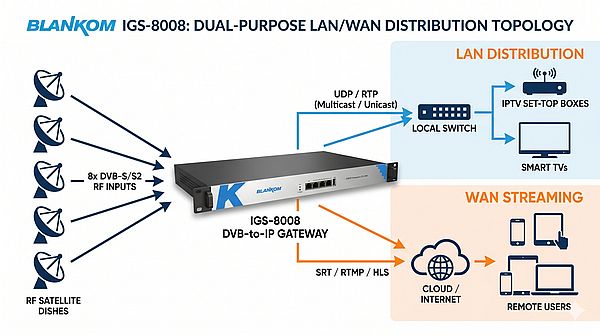

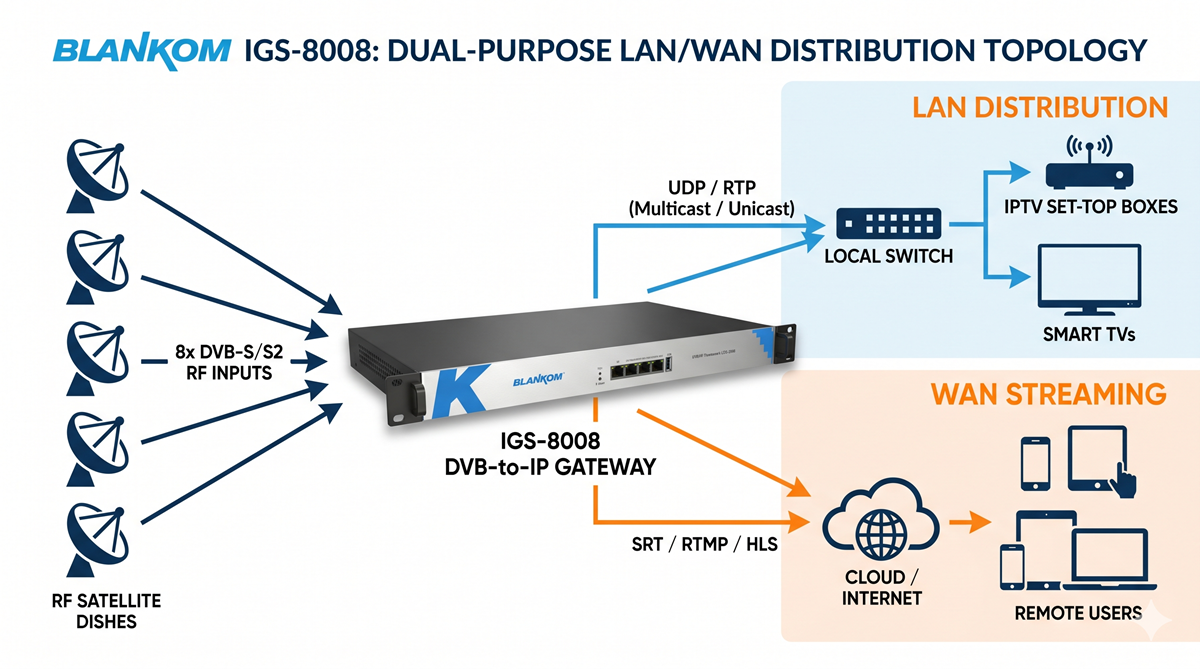

IGS-8008 8x DVB-S(2x) Transponder to 64 Uni-/Multicats streams
The IGS-8008 is an 8x DVB-S2x Tuner – IP-Streamer with multi-protocol IP Output Streams by UDP/RTP/RTSP/RTMP/HLS/HTTP/SRT protocols selectable.
It is flexible designed for different Tuner/ Demodulator combinations to receive Satellite DVB FTA RF-Signals,
such as DVB-S/S2/S2X or optional with Multi-Tuner for DVB-C/DVB-T/DVB-T2/ ISDB-T reception. Standard Version with 8 DVB-S Tuner: IGS-8008.
New: T2-Multistream-Support = DVB-S/S2 transponder with multiple T2-Transportstreams can be processed.
Block-Diagram:
Features:
- FTA DVB-S/S2/S2X or Option: DVB-C/DVB-T/DVB-T2/ ISDB-Tb Tuner inputs
- For T2 via SATellites: DVB-S2 Multistream (DVB-T2 TS combinations) demultiplexing and streaming
- Multi-protocol IP outputs as UDP/RTP/RTSP/RTMP/HLS/HTTP/SRT via RJ45 OUT port
- Maximal 64 SPTS output streams to the IPTV2 Gigabit-OUT
- 100Mbps-400Mbps data processing to IPTV2 OUT
- Embedded BISS descrambling
- HTTPS support for secure management Web-Access
- Option: DVB-Multi Tuner for DVB-C/T/T2, ATSC and ISDB-Tb
- IPTV/OTT and Digital Signage Applikationen
- Remote reboot by Web GUI Management
- T2-Multistream support from Satelliten via DVB-S/S2
Application Example:
Technical Data:
| Digital-TV Receiver IP-Gateway | 8 tuner inputs + 2x ASI in -> max. 64 Streams |
|---|---|
| Standard: DVB-S / -S2 / -S2x | F type 75 Ohm, QPSK/8PSK/16APSK 0.5...45 MSps; 8APSK/32APSK: 0.5...40 MSps |
| SPTS out over UDP/RTP/RTSP/RTMP/HLS/HTTP/SRT | |
| DVB-C/-T/-T2/ISDB-T/ATSC optional | 44 - 1002 MHz, 16/32/64/128/256 QAM, 6/7/8 MHz bandwidth |
| Input DVB-S/S2/S2x | T2-Multistream 8 DVB-S/S2x tuners input -SPTS output |
| DVB-S2x max. SR and Constellation: | QPSK/8PSK /16APSK :0.5...45 Msps 8APSK: 0.5...40Msps 32APSK: 0.5...34Msps |
| FEC - maximum | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20,11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/> |
| DVB- max input bitrate | ≤125 Mbps |
| IP : 64 SPTS as UDP/RTP 1x 1000M Base-T Ethernet interface (unicast/multicast) | |
| System | Web-Server based management via 100BaseT port, CAS-NMS |
| software upgrade via Web-IF | |
| Dimension | 482mmx367mm×44mm(W×L×H) |
| Approx weight | 4kg |
| Environment | 0...45°C (working condition); -20...80°C（in Storage） |
| Power requirements | PSU: AC 110V±10%,50/60Hz or AC 220V±10%, 50/60Hz |
Download Datasheet PDF
IGS-900 16 FTA DVB-S(2x) Transponder optional DVB-C/T(2)/ATSC/ISDB-T Channels
NEW DESIGN 2025
The IGS-900 is a FTA DVB to IP gateway with 16 DVB-S/S2x tuners (DVB-C, DVB-T/T2 optional) and de-multiplexing functions in a 1U chassis for converting RF signals to SPTS or MPTS IPTV output. Either SPTS or MPTS can be selected as IP Out. In addition, the IGS-900 is equipped with 2 ASI and IP-stream inputs. To meet the different requirements of applications, the IGS-900 is designed to remultiplex and re-stream TV and radio channels from any of its RF inputs, IP stream input and from 2 ASI IN sources - when operating chosen as MPTS mode. Capacities: Transport stream demultiplexing on up to 512x SPTS or 16 MPTS (re-multiplexing - in MPTS Mode) streaming output IP in UDP, RTP/RTSP with a total load of up to 850 Mbps. A BISS descrambling function is integrated. It has DiSEqC support for selecting up to 4 different satellite positions (DVB-S2x Frontend Version). Additional functions: CA filter and PID remapping as well as PID forwarding (depending on mode and model).
Block-Diagramm:
Features:
- 16 Tuner inputs DVB-S/S2/S2x (DVB-C -T/T2, ISDB-Tb optional)
- 2 ASI and IP MPTS input
- IP (512 SPTS or 16 MPTS) over UDP, RTP / RTSP output
- DiSEqC support for up to 4 Satellites
- 2 GbE mirrored output, up to 850 Mbps (SPTS) or 2 independent GbE output port, GE1 + GE2 (MPTS - Mode)
- Accurate PCR adjusting (SPTS)
- PID filtering and re-mapping (SPTS), CA-Filter, PSI/SI rebuilding and editing (SPTS), “Null PKT Filter” function (MPTS)
- USB-port for playback TS-recorded or Movie-files – Infochannel streaming files selectable or in a loop*
- IPTV/OTT and Digital Signage applications
- BISS 1/E embedded descrambling
- WEB-IF management
Technical Data:
| Digital-TV Receiver IP-Gateway | 16 tuner inputs + 2x ASI in -> either max. 512 SPTS or max. 16 MPTS outputs |
|---|---|
| DVB-S / -S2 / -S2x | >950...2150MHz, SR 0.5...45Msps, Strength -65... -25dBm |
| DVB-C/-T/-T2/ISDB-T/ATSC optional | 60...890MHz, 16/32/64/128/256 QAM, 6/7/8 M bandwidth |
| Input DVB-S/S2/S2x | Mode 1: 16 DVB-S/S2x tuners input +2 ASI input --- SPTS output Mode 2: 14 DVB-S/S2x tuners input +2 ASI input --- MPTS output Mode 3: 16 DVB-S/S2x tuners input --- MPTS output |
| DVB-S2x max. SR and Constellation: | QPSK/8PSK /16APSK :0.5...45 Msps 8APSK: 0.5...40Msps 32APSK: 0.5...34Msps |
| FEC - maximum | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20,11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/> |
| Max input bitrate | ≤125 Mbps |
| BISS Descrambling | Mode 1, Mode E (Up to 850Mbps) (descrambling individual program’s) |
| Output | 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast |
| 16 MPTS IP output (for Tuner passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast | |
| System | Web-Server based management via 100BaseT port |
| software upgrade via Web-IF | |
| Dimension | 482mm×230mm×44mm (W×L×H)> |
| Approx weight | 3.5kg |
| Environment | 0...45°C (working condition); -20...80°C（in Storage） |
| Power requirements | 20W |
Datasheet PDFDownload
IGS-700-4/8 DVB-S(2x) Transponder or DVB-C/T(2) QAM/COFDM Channels
The IGS-700-4/8 is a DVB to IP Gateway, with 2x2 (or optional 2x4) DVB-S/S2x tuners (DVB-C, DVB-T/T2 optional available).
The 1RU chassis is equipped with 2 modules and supports 4 or 8 tuner inputs in total, 1 ASI and IP-IN as well.
For PAYTV de-scrambling and de-multiplexing
the 2x2 CAM/CI slots can independently decrypt the programs coming from encrypted TS by RF, ASI or IP
and convert these RF signals into ASI (selectable TS) SPTS and MPTS outputs.
Multiservice decryption is possible according to the used professional MSD CAM versions.
To meet customers various requirements, the IGS-700 (4/8) is designed to de- and re-multiplex programs from any input: RF (SAT,DVB-C,T,ATSC,ISDB-Tb), ASI or IP.
Maximum outputs: Up to 2x16 SPTS and 2 MPTS streaming in multicast UDP or RTP and Unicast RTP/RTSP.
New: T2-Multistream support = receiving T2-Transportstreams from SAT
Block-Diagramm:
Features:
- 4(8=4xFTA+4xCI) Tuner inputs DVB-S/S2x (DVB-C/T/T2 optional)
- 2x1 ASI & IP-Stream (UDP) inputs
- 2x2 CI slots for multi-service decryption of RF/ASI/IP
- IP output (32 SPTS, 2 MPTS) as UDP or RTP/RTSP
- DiSEqC support for up to 4 Satellites for each Tuner
- 2 GbE output, up to 850 Mbps (SPTS) and 2x independent ASI out for Re-mux or Tuner/IP pass-through
- Accurate PCR adjusting (SPTS), “Null PKT Filter” function (MPTS)
- PID filtering and re-mapping (SPTS), CA-Filter, PSI/SI rebuilding and editing (SPTS)
- IPTV/OTT and Digital Signage applications
- BISS 1/E embedded descrambling
- T2-Multistream support
- WEB-IF management
Technical Data:
| Digital-TV Receiver IP-Gateway | 2x2 or 2x4 tuner inputs + 2x ASI in -> max. 32 SPTS and 4 (8) MPTS out |
|---|---|
| DVB-S / -S2 / -S2x | F type 75 Ohm, 950...2150MHz, SR 0.5...45Msps, Strength -65... -25dBm |
| 2×ASI input for de- /re-mux, BNC interface | |
| IP-Inputs Uni- and Multicast as MPTS/SPTS for de-/re-multiplexing | |
| DVB-C/-T/-T2/ISDB-T/ATSC optional | 44 - 1002 MHz, 16/32/64/128/256 QAM, 6/7/8 MHz bandwidth |
| Input DVB-S/S2/S2x | T2-Multistream Mode 1: 16 DVB-S/S2x tuners input +2 ASI input --- SPTS output Mode 2: 14 DVB-S/S2x tuners input +2 ASI input --- MPTS output Mode 3: 16 DVB-S/S2x tuners input --- MPTS output |
| DVB-S2x max. SR and Constellation: | QPSK/8PSK /16APSK :0.5...45 Msps 8APSK: 0.5...40Msps 32APSK: 0.5...34Msps |
| FEC - maximum | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20,11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/ |
| DVB- max input bitrate | ≤125 Mbps |
| Decryption | by 2x2 CI slots with multiple CAM TS rates adjustable for different CI-Module usage and embedded BISS Mode 1/E |
| Output | ASI : 2x BNC interface, for Mux -or passthrough |
| IP : 2x2x 16 SPTS over UDP/RTP 2x 1000M Base-T Ethernet interface (unicast/multicast) 2x MPTS over UDP, RTP | |
| System | Web-Server based management via 100BaseT port |
| software upgrade via Web-IF | |
| Dimension | 482mm×300mm×44mm (W×L×H) |
| Approx weight | 3kg |
| Environment | 0...45°C (working condition); -20...80°C（in Storage） |
| Power requirements | 20W with either PSU: AC 110V±10%,50/60Hz or AC 220V±10%, 50/60Hz |
Datasheet PDFDownload
Download the 'QUICK & DIRTY' Setup instructions-PDF ...:
IGA-4400 DVB-ASI/IP Bi-Directional Gateway Multiplexer
The Bridge between old (ASI) and new transport ways (IP):
The IGA-4400 is a high-performance multiplexing device for digital TV broadcasting headend systems with TS output through 4 bi-directional ASI and 2 bi-directional IP ports.
It can multiplex up to 4 ASI and 512 IP inputs to 4 MPTS. The ASI ports can be flexible assigned either as input or output.
The internal IP multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting.
Its high integration and cost effective design makes this device widely used in broadcasting systems.
It can be operated locally or remotely with any web browser or SNMP software.
With its state of the art design, the BLANKOM IGA 4400 is suitable for use at highly professional applications like broadcasting stations, and CATV headends.
Block-Diagramm:
Features:
- ASI to IP and IP to ASI Gateway (bi-directional)
- IP Multiplexer (SPTS IP in, MPTS IP & ASI out)
- 4 bi-directional ASI ports and 2 100/1000M ethernet ports
- Maximum 2+2 ASI inputs and 256×2 IP inputs
- Maximum 2+2 ASI outputs and 4 IP (MPTS) outputs over UDP
- Accurate PCR adjusting, “Null PKT Filter” function (MPTS)
- PID filtering and re-mapping (SPTS), CA-Filter, PSI/SI rebuilding and editing (SPTS)
- buffer memory for saving the overflowing code stream
- Alarm function
- WEB-IF management
Datasheet PDF Download
