UHD 4K Encoder IPTV Streamer
BLANKOM h.264 AVC and h.265 HEVC IPTV Encoding-Streaming as a hardware-based solution.
Inputs available: HDMI, 3G/12G SDI, Display Port (DP)
With the introduction of this HEVC streaming encoder, using a hardware SoC DSP encoder, the weakness of software encoding,
which has caused problems in many installations and application so far, is history.
The 4K video encoders are a hardware-only solution and can be used as a direct replacement for traditional HDMI capture cards or software encoding methods.
Off-Topic Tricks and how to setup the SoC encoders for YouTube and other use cases: Extra Tipps and Tricks Page - Multiprotocol-Encoders

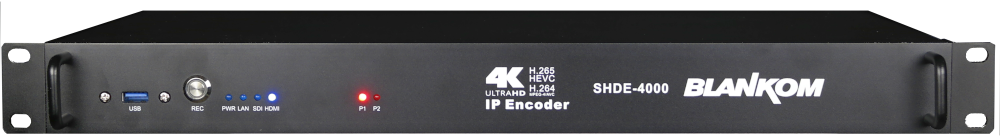

SHDE-4000 -4002 -400
UHD 4Kp60 HDR - 12G SDI and HDMI Encoder- Streamer -_- our flagship and brand new...
The boxed Version SHDE-400:
The SHDE-4000 IPTV encoder is designed for TV signal distribution in excellent quality over LAN and INTERNET. The h.264 and h.265 (HEVC) compatible compression technology features low-latency and low bit rates for IPTV/OTT systems. The high- efficient encoding chips saves bandwidth cost through all its resolution range. Distribution of SD up to UHD TV channels through the IPTV/OTT network using state-of-art IP technology from almost any kind of video input. Excellent video and audio quality. High reliability 24/7 approved. No regular service and maintenance need during operation.
Features:
- 12G SDI HDMI 4kp60 HDR compatible
- 1x 4kp60 + 1x FHD 1080p60 from Inputs simultaneously encoding possible.
- Stereo Audio embedded or external Input (3.5mm Stereo Jack)
- UHD, HD & SD Resolution 2160p, 1080p, 1080i, 720p, ... Downscaling supported
- Multiple parallel streaming Protocol's supported: Unicast RTSP, RTMPs, HTTP, HLS, FLV, SRT, MJPG and Multicast UDP/RTP
- Distribution of Video Camera and other sources content over LAN and WAN and recording to USB 3.0 - mounting with MS compatible SAMBA support
- max. 2x 4 simultaneous and independent Live stream broadcasting encoder engines (Main- and Secondary) to multiple destinations
- Logo and/or Text Overlay injections into the running Video pictures
- Video-over IP applications (Studio signal conversion and distribution)
- IPTV/OTT and Digital Signage applications
- Video conferencing, Camera streaming (ONVIF support)
- Content-Recording --- e.g. with OBS- OPEN BROADCASTER SOFTWARE compatibel -> https://obsproject.com
- Available as BOXED Version with external Power Supply Unit (PSU): SHDE-400
- Available as 2-Encoder-blades Version in 1RU but with single Power Supply Unit (PSU): SHDE-4002
Technical Data:
| UHD 4K SDI/HDMI Encoder-Streamer | 4Kp60 Encoder & IPTV Streamer with 12G SDI & HDMI Input |
|---|---|
| Video Input | HDMI & 12G SDI input, Max support 4096x2160@60fps / 3840x2160@60 / 2560x1440@144fps,etc. | Audio Input | HDMI & SDI embed audio & External Analog audio input |
| Video Encoding: | H.264/AVC High/Main/Baseline ProfileH.265/HEVC main profile, MJPEG/JPEG baseline |
| Max. support 4096x2160@60fps, VBR/CBR/Strong CBR Resolution: 5-144FPS, Bitrates: 0.1...100Mbps |
|
| Streaming Protocols | Unicast SRT / HTTP / HTTPS / HLS / FLV / RTSP / RTMP / RTMPS Multicast UDP/RTP TS Streams |
| Audio Encoding: | AAC/AAC+/AAC++/MP3/MP2/AC3 G711, 44.1kHz/48kHz, 12...640kbps |
| System | English Web Interface- management – telnet access can be enabled
Ethernet software upgrade, default IP 192.168.1.168, default user/pass= admin/admin |
| software upgrade via Web-IF | |
| Dimension | 19'' 480x 270x40 mm or boxed 150x110x45mm(W×L×H) |
| Approx weight | 2400g (boxed 500g w/o PSU) |
| Environment | -10 to 70 deg C (working condition); –20 to 80 deg C（in Storage） |
| Power requirements | 2x IEC plug AC input 100-240V 50/60Hz redundant PSU's, or ext. 100-240AC to DC 12V 2A |
Datasheet PDFDownload
Actually we offer several 'boxed' UHD-4K encoder-streamer:
HDE-275 (4Kp30) and HDE-276 (4Kp60 / HDR) and a compact 4xHDMI HDE-275Q with 2x 4Kp30 and 2x Full-HD engines
HDE-276 UHD 4Kp60 HDR
Features:
- HDMI 4kp60 HDR compatible with loop out
- Stereo Audio embedded or external Input (3.5mm Stereo Jack)
- UHD, HD and SD Resolution 2160p, 1080p, 1080i, 720p, ... Downscaling supported
- Multiple parallel streaming Protocol's supported: Unicast RTSP, RTMPs, HTTP, HLS, FLV, SRT, MJPG and Multicast UDP/RTP
- Distribution of Video Camera and other sources content over LAN and WAN and recording to USB or µSD-Card - SAMBA support
- max. 4 simultaneous and independent Live stream broadcasting encoder engines to multiple destinations
- Logo and/or Text Overlay injections into the running Video pictures
- Video-over IP applications (Studio signal conversion and distribution)
- IPTV/OTT and Digital Signage applications
- Video conferencing, Camera streaming (ONVIF support)
- Content-Recording --- e.g. with OBS
Datasheet PDF Download
HDE-275 UHD 4Kp30 and light version
Features:
- HDMI 4kp30 compatible Encoder - Streamer - Available as 2nd 'Light'* Version w/o USB/µSDCard Recording and Samba
- NEW: Available as DPE-275 Version with DISPLAY-PORT & -Loop out: DPE-275
- Available as 'light' Version with HDMI -Loop out: HDE-275L (or-H) and optional PoE support
- Stereo Audio embedded or external Input (3.5mm Stereo Jack)
- UHD, HD & SD Resolution 2160p, 1080p, 1080i, 720p, ... Downscaling supported
- Multiple parallel streaming Protocol's supported: Unicast RTSP, RTMPs, HTTP, HLS, FLV, SRT, MJPG and Multicast UDP/RTP
- Distribution of Video Camera and other sources content over LAN and WAN and recording to USB or µSD-Card - SAMBA support
- Max. 4 simultaneous and independent Live stream broadcasting encoder engines to multiple destinations
- Logo and/or Text Overlay injections into the running Video pictures
- *): The 'light' Version has VLAN support 1/2/3
- Video-over IP applications (Studio signal conversion and distribution)
- IPTV/OTT and Digital Signage applications
- Video conferencing, Camera streaming (ONVIF support)
- Content-Recording --- e.g. with OBS
Front-HDE-275L -light with HDMI loop and optional PoE
Front-DPE-275L with Display-Port loop and Rear with USB3.0
Datasheet PDFDownload
HDE-275Q UHD 2x 4Kp30 FHD 2x 1080p60 boxed version
and in 1RU 19''-with up to 4x4=16 HDMI Input= HDE-4275Q
Features:
- 4x HDMI 4kp30 compatible Encoder - Streamer available as 1RU HDE-4275Q with 16 Inputs
- Stereo Audio embedded or external Input (3.5mm Stereo Jack)
- UHD, HD & SD Resolution 2160p, 1080p, 1080i, 720p, ... Downscaling supported
- Multiple parallel streaming Protocol's supported: Unicast RTSP, RTMPs, HTTP, HLS, FLV, SRT, MJPG and Multicast UDP/RTP
- Distribution of Video Camera and other sources content over LAN and WAN - 1x Gigabit Ethernet
- Multiple simultaneous and independent Live stream broadcasting encoder engines to multiple destinations
- Video-over IP applications (Studio signal conversion and distribution)
- IPTV/OTT and Digital Signage applications
- Hospitality, Camera streaming (ONVIF support)
- Content-Recording --- e.g. with OBS
Datasheet as PDF Download
