1 SAT Position Multiswitches

from 8 to 32 subscriber outputs + cascadable

1-Sat-Position Multiswitches with Terrestrial support

Multiswitch family for 4 LNB (H/V,High-/Low-Band) Inputs + 1x Terrestrial to 8/ 12 / 16 / 24 / 32 Receiver Outputs
Options: Standalone, Receiver powered, Terrestrial passive or active, 22kHz Generator (QUAD LNB support), Cascade (K).
This Multiswitch family is intended for small distribution networks as a standalone version, Receiver powered or as Cascade Version. Terrestrial (off-air) signals are routed active (T-Versions) or passive. Each user output circuitry is operated from users SAT-SetTopBox or TV with Multituner.
A power supply (15 or 18V depending on type) have to serve the switch for remote powering the LNB or in cascades for the trunk line amplifier for long distance cable compensations. External (internal) power serving is used for feeding internal active Terrestrial pathway amplifiers and an optional 22 kHz generator for QUAD-LNB support (22k – versions).

  • industrial power supplies with high isolation have been used for fail-safe operation
  • latest RF-chipset technology
  • Cascading with up to 7 multiswitches allows flexible adaptation to larger buildings
  • integrated amplifier for low insertion loss
  • high isolation between polarisations
  • return loss < 10 dB (low bit errors)
  • new stripline technology
  • with integrated or high class external power supply
  • Made in Germany

The 5 Inputs (4x SAT, 1x Terrestrial) to 8/12/16/24/32 Outputs SAT Multiswitches are available with different features:

Name Variant Description X=placeholder for 8,12,16,24,32
BMS The Typename part can vary: BS or BMP = Standalone MS (incl. PSU with Euro-Plug)
BSB Standalone (incl. PSU) but with British power cord
BMS 51-X Standalone, terrestrial passive for Quattro LNB’s. The ‘X’ is a placeholder for 8, 12, 16, 24 or 32 outputs’
BMS 51-X T Standalone, terrestrial active for Quattro LNB’s. The ‘X’ is a placeholder for 8, 12, 16, 24 or 32 outputs’
BMS 51-X T 22k Standalone, terrestrial active, with 22 kHz supporting QUAD-LNB’s and QUATTRO LNB’s
BMS 51-X R Standalone, no internal PSU, Power served from the SAT-Receivers. Optional external PSU available. No active T
BMS 51-X (T / 22k) Standalone version w/o internal PSU, coax cable power served by trunk- or input-amplifier or from external PSU, different options
BKD 51-X (T) 5 Cascaded outputs’, external PSU necessary or sourced by a standalone final Multiswitch, (T) Active or passive. Cascades are not available with 22 KHz Quad-support
Type Modelname Short Description Remarks , Extras
Without PSU
BSD-51-08BSD-51-08
1-SAT + terr to 8 Subscriber outputs available as terrestrial active or passive, source by cascade bottom top or Amplifier or external
With PSU

PDF

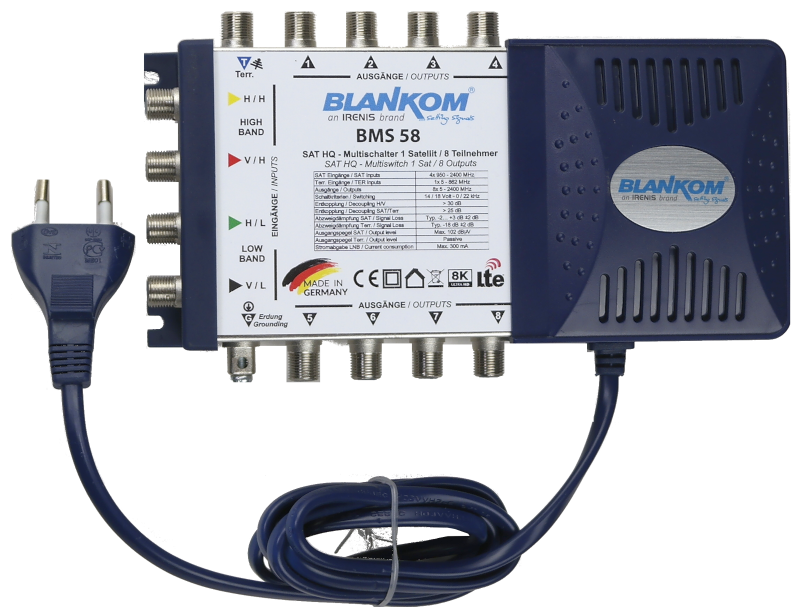

BMS51-8T BMS-51-06(08)
1-SAT + terrestrial to 6 or 8 Receiver/Subscriber outputs, 22kHz for QUAD LNB's optional available Available as terrestrial active (T) or passive, internal PSU

PDF

BMS-51-12 BMS-51-12/-16
1-SAT-positions Standalone Multiswitch for 12 or 16 Receivers/Subscribers, 22kHz for QUAD LNB's optional available available as terrestrial active (T) or passive version, internal PSU

PDF

BMS-51-32BMS-51-24/-32
1-SAT-positions Standalone Multiswitch for 24 or 32 Receivers / TVs, 22kHz for QUAD LNB's optional available Available as terrestrial active (T) or passive version, internal PSU
Cascades

PDF

BKD-55-08 (T)BKD-55-08 (T)
Cascade-Version for bigger buildings - less rooms per floor available as terrestrial active (T) or passive version, external PSU or bottom up served

PDF

BKD-55-12-16 BKD-55-12/-16 (T)
Cascade-Version for bigger buildings - mid size number of flats per floor available as terrestrial active or passive version, external PSU or bottom up served

PDF

BKD-55-24-32 BKD-55-24/-32 (T)
Cascade-Version for buildings with 24 or 32 Receiver serving a huge number of rooms/floor Available as terrestrial active or passive version, external PSU or bottom up served
receiver sourced

PDF

BMS-51-8R BMS-51-8R
ECO: Receiver Sourced -Version for buildings - size for max 6 or 8 TVs Available as terrestrial passive version, no PSU necessary

PDF

BMS-51-16R BMS-51-12R/16R
ECO: Receiver sourced -Version for buildings - size for max 12 - 16 TVs Available as terrestrial passive version, no PSU necessary

PDF

BMS-51-24R/32R BMS-51-24R/32R
ECO: Receiver sourced- Version for buildings - size for max 24 -32 TVs Available as terrestrial passive version, no PSU necessary

Datasheet PDF Download
