Integrated Receiver Decoder

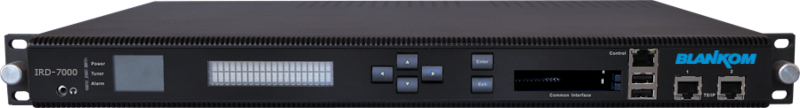

BLANKOM professional UHD-HEVC IRD-7000
The IRD-7000 is the newest model and flagship of BLANKOM’s IRD product family.
It provides operators an ideal solution for receiving, remultiplexing, descrambling and decoding operations,
maximum sup- porting 4Kx 2K@60fps 10bit decoding. Equipped with a variety of inputs, it ensures compatibility with all transmission media.
The IRD-7000’s re-multiplexing capabilities enable creation of new transport streams that are subsets of the original stream.
Customized services may be output as multiple SPTS or MPTS over IP, as well as over ASI.
By the dual DVB common interfaces, this IRD can decrypt multiple services from one transport stream or two.
IRD-7000 is also a professional IRD that features a broadcast quality decoder for MPEG-2 and MPEG-4 AVC/H.264 HEVC/H.265 in SD,
HD and UHD formats, and provides a variety of industry standard digital and analog outputs, including CVBS video,
HDMI and 4x 3G SDI interface.
The unit also performs aspect ratio adaptation of HD programs to generate professional quality baseband analog
video and audio outputs for easy integration with existing cable network infrastructure and for broadcast environment.
This all-in- one architecture makes the IRD-7000 an ideal product for distribution and contribution networks.
Features:
- Different input options available: DVB-S2/S/C/T, ATSC, ISDB-T, TS/IP and ASI
- Supports DVB-S2 Input Stream Identifier and DVB-T SFN MIP pass through
- Redundant backup function between Tuner, ASI and TS/IP with selectable priority
- SD/HD/UHD MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265 video decoding, HDR10/HLG
- Analog and Digital Outputs, ASI, CVBS, HDMI, SDI, TSoIP
- Multiple 4K output interfaces, 4x 3G SDI, 12G SDI and HDMI 2.0
- Built-in TS re-multiplexer receives from ASI, Tuner and TS/IP Inputs
- 2x DVB-CI Slots, support for all major CAS and CAM's, BISS-1 and BISS-E de- scrambling
- Dynamic PMT detection and automatic updating
- Supports VBI TELETEXT, EBU/DVB Subtitle, Closed Caption
- UDP/RTP, Unicast/Multicast, and double full duplex SPTS/MPTS over IP
- Remote Control and Supervision by SNMP, HTTP WEB
- One alarm Relay with D-sub 9 male connector
- On-Site software update through IP and USB
- RSSI, received Eb/No & BER monitoring
Datasheet PDF Download
BLANKOM DVB & IP Dual Tuner HD IRD-6300 with multiple outputs
The BLANKOM IRD-6300 is a well-designed Integrated Receiver Decoder.
Depending on the selected Tuner option it’s dual frontend supports DVB-S/S2x (DVB-C, DVB-T/(T2), ISDB-T and ATSC-optional) and additionally ASI and IP Input sources.
After demultiplexing and decryption with max 2 CI module, the decoded content can be passed to digital interfaces ASI, IP, HDMI.
Its various A/V outputs support HD/SD-SDI, CVBS, stereo Audio, for universal professional need.
With the 2 independent CAM/CI slots the IRD-6300 support multiple channel (Tuner, ASI or IP) de-scrambling and transparent signal output.
BISS-Embedded decryption supported.
Operation by using front panel LCD or by the inbuilt comfortable Web-Interface.
Features:
- 2x Tuner DVB-S/S2x L-Band Input, (DVB-C/ISDB-Tb/T/T2 optional)
- 2x ASI and IP (UDP) Inputs (and outputs)
- HD/SD-SDI, 2 ASI, HDMI, CVBS Video Output
- Video: HD/SD MPEG2, MPEG4 AVC/H.264, HEVC/H.265 decoding
- Audio: MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/Dolby Digital Plus decoding and AC3 passthrough
- 2 independent CI-Slots for 2 CA Modules (CAM) TS from ASI/Tuner/IP
- BISS Descrambling: Mode 1 and Mode E, up to 120Mb/s
- Embedded Re-multiplexer 128 PIDs
- Up to 2 Stereo analogues out with Adapter
- Web based Management = NMS Network Management, 1x GbE Streaming
Datasheet PDF Download
