Satellite Multiswitch Premium Series

SAT-IF Distribution System

  1. BACK
  2. Satellite Multiswitch Series
1 SAT-Pos 8...32 out 2 SAT-Pos 8...32 out 3 SAT-Pos 8...32 out 4 SAT-Pos 8...32 out 2-Sat Receiver sourced ECO

MoQ 50/25/10
1 SAT-Pos-08-32 out
receiver sourced
1 SAT -32 out
1 SAT Cascade

1 SAT-Position BMS Series 8-32 out

single Datasheets 5 Datasheet Price: upon request eMail

BLANKOM 1 SAT-Position (+terr) Multiswitches
wallmount Multiswitch family Made in Germany.
5 Inputs to 8/ 12 / 16 / 24 / 32 Outputs, from Receiver-Sourced up to cascades and standalone versions
Highest Performance, low Power consumtion, designed for long life operation

  • 1 Satellite (4x Quad/Quattro L/C-Band MDU LNB support)
  • Cascade-Version for buildings with 24 or 32 Receiver serving a huge number of rooms/floor
  • Available as terrestrial active or passive version, external PSU or bottom up served
  • ECO: Receiver sourced- Version for buildings - size for 8 max. 32 TVs
  • 1-SAT-positions Standalone Multiswitch for 24 or 32 Receivers / TVs, 22kHz for QUAD LNB's optional available
  • Die Cast version on demand, Unicable MS = on demand
  • Small: 1-SAT + terrestrial to 6 or 8 Receiver/Subscriber outputs, 22kHz for QUAD LNB's optional available
  • Power supplies for Cascades and optional: 110-240 VAC or 15V DC 3.3A

MoQ 50/25/10
1 SAT-Pos-08-32 out
1 SAT -32 out
1 SAT Cascade

2 SAT-Position BMS Series 8-32 out

DatasheetsPrice: upon request eMail

BLANKOM 2 SAT-Position (+terr) Multiswitches
Wallmount Multiswitch family Made in Germany.
9 Inputs to 8/ 12 / 16 / 24 / 32 Outputs, from Receiver-Sourced up to cascades and standalone versions
Highest Performance, low Power consumtion, designed for long life operation

  • 2 Satellite (4x Quattro L/C-Band MDU LNB support)
  • Cascade-Version for buildings with 24 or 32 Receiver serving a huge number of rooms/floor
  • Available as terrestrial active or passive version, external PSU or bottom up served power concept
  • 2-SAT-positions Standalone Multiswitch for 24 or 32 Receivers / TVs, 22kHz for QUAD LNB's optional available
  • Unicable MS = on demand
  • Small: 2-SAT + terrestrial to 6 or 8 Receiver/Subscriber outputs
  • Power supplies for Cascades and optional: 110-240 VAC or 15V DC 3.3A

MoQ 10
1 SAT-Pos-08-32 out
receiver sourced
1 SAT -32 out
1 SAT Cascade

3 SAT-Position BMS Series 8-32 out

DatasheetsPrice: upon request eMail

BLANKOM 3 SAT-Position (+terr) Multiswitches
Wallmount Multiswitch family Made in Germany.
13 Inputs to 8/ 12 / 16 / 24 / 32 Outputs, cascades and standalone versions
Highest Performance, low Power consumtion, designed for long life operation

  • 3 Satellite (4x Quattro L/C-Band MDU LNB support)
  • Cascade-Version for buildings with 8...24 or 32 SAT-Receiver (TV's) serving a huge number of rooms/floor
  • Available as terrestrial active or passive version, external PSU optional (cascades) or bottom up served
  • 3-SAT-positions Standalone Multiswitch for 24 or 32 Receivers / TVs for Quattro LNB's
  • Small: 3-SAT + terrestrial to 6 or 8 Receiver/Subscriber outputs
  • Power supplies for Cascades and optional: 110-240 VAC or 15V DC 3.3A

MoQ 10
4 SAT-Pos-08-32 out
4-sat standalone
4 SAT -32 out
4 SAT Cascade

4 SAT-Position BM(S/K) Series 8-32 out

Datasheets Price: upon request eMail

BLANKOM 4 SAT-Position (+terr) Multiswitches
Wallmount Multiswitch family Made in Germany.
17 Inputs to 8 / 12 / 16 / 24 / 32 Outputs, cascades and standalone versions
Highest Performance, low Power consumtion, designed for long life operation

  • 4 Satellite (4x Quattro L/C-Band MDU LNB support)
  • Cascade-Version for buildings with 8...24 or 32 SAT-Receiver (TV's) serving a huge number of rooms/floor
  • Available as terrestrial active or passive version, external PSU optional (cascades) or bottom up served
  • 4-SAT-positions Standalone Multiswitch for 8...24 or 32 Receivers / TVs for Quattro LNB's
  • Small: 4-SAT + terrestrial to 8 Receiver/Subscriber outputs
  • Power supplies for Cascades and optional: 110-240 VAC or 15V DC 3.3A

MoQ 100
1 SAT-Pos-08-32 out
receiver sourced
1 SAT -32 out

ECO: 2 SAT-Position BME808

DatasheetPrice: upon request eMail

BLANKOM ECO 2 SAT-Position Multiswitch
wallmount Multiswitch family Made in Germany - Cascade and standalone versions.
8 Inputs to 8 or 16 Outputs. From Receiver sourced: No Power supply necessary. Grow with your buildings/household... if more connections needed
- just add the BME-0808K cascading unit
Highest Performance, low Power consumtion, designed for long life operation. Optimized RF design for the usage in households or apartment buildings

  • 2x Quad/Quattro LNB-IN to 8 or 16 Out
  • Standalone 8-out and K-Cascade Version to upgrade from 8 to 16
  • Low power consumption, dual LNB powering through its Receivers
  • No terrestrial pathway= Better SAT-IF performance
  • 2x SAT-positions, L-Band : 950-2150MHz, DiSEqC support, Seamless automatic switching
  • LED status indicators for each In- and Outputs
  • Compact size: 18x12x4cm per unit
  • Small: 1-SAT + terrestrial to 6 or 8 Receiver/Subscriber outputs, 22kHz for QUAD LNB's optional available
  • Power supplies for Cascades and optional: 110-240 VAC or 15V DC 3.3A

Satellite-IF Signal Distribution by premium Multiswitches

Type Modelname Short Description Remarks , Extras
Without PSU
BSD-51-08BSD-51-08
1-SAT + terr to 8 Subscriber outputs available as terrestrial active or passive, source by cascade bottom top or Amplifier or external
With PSU

PDF
BMS51-8T BMS-51-06(08)
1-SAT + terrestrial to 6 or 8 Receiver/Subscriber outputs, 22kHz for QUAD LNB's optional available Available as terrestrial active (T) or passive, internal PSU

PDF
BMS-51-12 BMS-51-12/-16
1-SAT-positions Standalone Multiswitch for 12 or 16 Receivers/Subscribers, 22kHz for QUAD LNB's optional available available as terrestrial active (T) or passive version, internal PSU

PDF
BMS-51-32BMS-51-24/-32
1-SAT-positions Standalone Multiswitch for 24 or 32 Receivers / TVs, 22kHz for QUAD LNB's optional available Available as terrestrial active (T) or passive version, internal PSU
Cascades

PDF
BKD-55-08 (T)BKD-55-08 (T)
Cascade-Version for bigger buildings - less rooms per floor available as terrestrial active (T) or passive version, external PSU or bottom up served

PDF
BKD-55-12-16 BKD-55-12/-16 (T)
Cascade-Version for bigger buildings - mid size number of flats per floor available as terrestrial active or passive version, external PSU or bottom up served

PDF

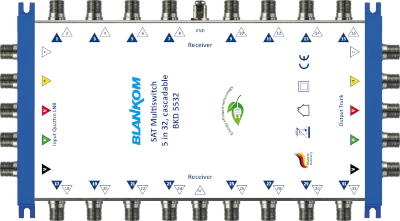

BKD-55-24-32 BKD-55-24/-32 (T)
Cascade-Version for buildings with 8...24 or 32 Receiver serving a huge number of rooms/floor Available as terrestrial active or passive version, external PSU or bottom up served
receiver sourced

PDF
BMS-51-8R BMS-51-8R
ECO: Receiver Sourced -Version for buildings - size for max 6 or 8 TVs Available as terrestrial passive version, no PSU necessary

PDF
BMS-51-16R BMS-51-12R/16R
ECO: Receiver sourced -Version for buildings - size for max 12 - 16 TVs Available as terrestrial passive version, no PSU necessary

PDF
BMS-51-24R/32R BMS-51-24R/32R
ECO: Receiver sourced- Version for buildings - size for max 24 -32 TVs Available as terrestrial passive version, no PSU necessary
receiver sourced BME-0808 Box Type, 8x8, standalone, addon to BME-0808K - the cascade = flexible 8-16, Receiver-Powered

Type Modelname Short Description Remarks , Extras
With PSU

PDF
BS-91-08 BMS 91-8

2-SAT Positions + terrestrial pathway to 8 Receivers / TV outputs

available as terrestrial active (T) or passive, internal PSU standalone

PDF
BS-91-12/-16 BS-91-12/-16
2-SAT-positions Standalone Multiswitch for 12 or 16 Receivers / TVs available as terrestrial active or passive version, internal PSU

PDF
BS-91-24/-32 BS-91-24/-32
2-SAT-positions Standalone Multiswitch for 24 or 32 Receivers / TVs available as terrestrial active or passive version, internal PSU
Cascades

PDF
BKD-91-08 BKD-91-08
8 Subs Cascade-Version for bigger buildings - less rooms per floor available as terrestrial active or passive version, external PSU or bottom up served

PDF
BKD-91-12/-16 BKD-91-12/-16
12 or 16 subs Cascade-Version for bigger buildings - middle size flats per floor available as terrestrial active or passive version, external PSU or bottom up served

PDF
BKD-91-24/-32 BKD-91-24/-32
24 - 32 subs Cascade-Version for bigger buildings - size for huge numbers of rooms/floor available as terrestrial active or passive version, external PSU or bottom up served

Type Modelname Short Description Remarks , Extras
With PSU

PDF
BS-131-08 BS-131-08
3-SAT + terr to 8 Subscriber outputs, integrated amplifier for low insertion loss, high isolation between polarisations available as terrestrial active (T) or passive, return loss < 10 dB (low bit errors),new stripline technology

PDF
BS-131-08 BS-131-12/-16
3-SAT-Positions high quality A-CLASS Standalone Multiswitch for 12 or 16 Subscribers, internal Power Supply (PSU) Available as terrestrial active (T)or passive version, MADE IN GERMANY

PDF
BS-131-24/-32 BS-131-24/-32
3-SAT-positions Standalone Multiswitch for 24 or 32 Subscribers: Serving many housholds from one SAT-Dish center station available as terrestrial active or passive version, in combination with cascade-versions up to 250 TV/Receiver can be served
cascades

PDF
BKD-131-08 BKD-131-08
Cascade-Version for bigger buildings - less rooms per floor 8 receiver out: Small Hotels or Residences available as terrestrial active or passive version, external PSU, Power up design: Last Multiswitch serves from bottom to top LNB's

PDF
BKD-131-12/-16 BKD-131-12/-16
Cascade-Version for bigger buildings - middle size Hotels and residences with usual number of flats per floor available as terrestrial active or passive version, optional external PSU, flexible combination with other foor-Multiswitches -> Save CAPEX

PDF
BKD-131-24/-32 BKD-131-24/-32
Cascade-Version for bigger buildings - size for huge numbers of rooms/floor: Bigger Hotels and Residences serving available as terrestrial active (T) or passive version, external PSU 15VDC 3A optional, MADE in GERMANY= High Quality (SAT-IF Signal and long life design)

Type Modelname Short Description Remarks , Extras
With PSU

PDF
BS-171-08 BS-171-08
4-SAT + terr to 8 Subscriber outputs, integrated amplifier for low insertion loss, high isolation between polarisations available as terrestrial active or passive, return loss less than 10 dB (low bit errors),new stripline technology

PDF
BS-171-12/-16 BS-171-12/-16
4-SAT-Positions high quality A-CLASS Standalone Multiswitch for 12 or 16 Subscribers, internal Power Supply (PSU) Available as terrestrial active or passive version, MADE IN GERMANY

PDF
BS-171-24/-32 BS-171-24/-32
4-SAT-positions Standalone Multiswitch for 24 or 32 Subscribers: Serving many housholds from one SAT-Dish center station available as terrestrial active or passive version, in combination with cascade-versions up to 250 TV/Receiver can be served
cascades

PDF
BKD-171-08 BKD-171-08
Cascade-Version for bigger buildings - less rooms per floor 8 receiver out: Small Hotels or Residences available as terrestrial active or passive version, external PSU, Power up design: Last Multiswitch serves from bottom to top LNB's

PDF
BKD-171-12/-16 BKD-171-12/-16
Cascade-Version for bigger buildings - middle size Hotels and residences with usual number of flats per floor available as terrestrial active or passive version, external PSU, flexible combination with other foor-Multiswitches -> Save CAPEX

PDF
BKD-171-24/-32 BKD-171-24/-32
Cascade-Version for huge buildings - size for huge numbers of rooms/floor: Bigger Hotels and Residences serving available as terrestrial active or passive version, external PSU, MADE in GERMANY= High Quality (SAT-IF Signal and long life design)

Accessories

Input Type Modelname Short Description - NEW 2023/24 Remarks , Extras
Power Supply Unit PSU PSU-15V-3.3A Available for DieCast (F) and with DC Jack 5.1: Receiver sourced (optional) and for Cascades metal shield types (optional) and Amplifiers
terminator TDC-75 Terminator Resistor 75Ohm impedance, DC blocked F-male for Multiswitch Trunks: unused output ports
