Coming-soon: Neuerscheinungen
Wir veröffentlichen hier an dieser Stelle eine kurze Vorschau auf neue Produkte... Schauen Sie von Zeit zur Zeit vorbei...

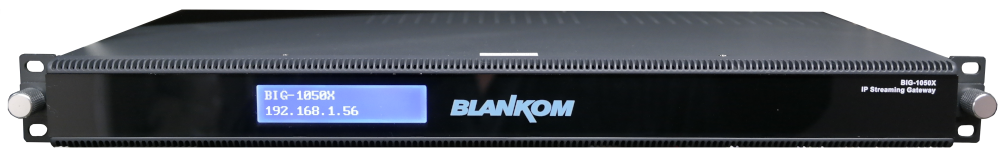

BIG-1050X IP-IP Streaming Protokoll-Konverter / Gateway
- BIG-1050X:
- Max. 50 Input zu 50 Output streams via 6 Gigabit Ethernet ports - individuell wählbar
- Multicast UDP/RTP & Unicast: UDP/RTP (SSM), SRT (alle 3 Modi), HTTP, RTMP , HLS, RTSP/RTP
- Applikations Beispiel: Conversion zwischen Kopfstellen Multicasts zu Unicast SRT -> Internet -> SRT zu Multicast
- Applikation 2: Importieren von Unicast streams von diversen Quellen z.B. aus dem Internet zu multicast UDP/RTP Out -> Headend, IPTV Netzwerk
- Web-Interface mit Stream Analyser - Streamdetails wie PCR, PIDs, etc.
- MPTS und SPTS Input und Protokollkonvertierung
- Der Stream output kann als CBR mit Null Packets PID 8191dec versehen werden
- Dual redundante wide range Netzteile (2x PSU)
- Auch erhältlich als eine mehr powerfulle Version mit 100 Streams "in a box": BIG-1100X
- Mini-Decoder: h.264 Decoder mit HEVC und UHD stream Input support (max. 4kp30)
- Max. Output HDMI FullHD 1080p60 (UHD wird downscaled), Mosaic Picture (4 in 1) support
- Multicast UDP/RTP & Unicast: SRT (+push mode), http, RTMP (+push), HLS (+push), RTSP, PTL, SAP private PTE stream support
- Applikation 1: Digital Signage Receiver und USB mp4 player (Firmware 1)
- Applikation 2: mp4 player vom USB (FAT32) und Multiprotocol streamer mit SAMBA- Network File System mounts USB
- Web-Interface = remote controlled playing/streaming oder Digital Signage Decoding Konfiguration
- SHC-12G: 12G-SDI to 2xHDMI 2.0 bis zu 4K UltraHD 60p - mit wahlweise downscaling zu HDMI 1 - Ausgang 4K -> 1080p
- Support für Colour Schema 4:4:4/4:2:2/4:2:0 HDMI 2.0 output
- Anwendungsfall: Stream-Anzeigen in medizinischen Systemen
